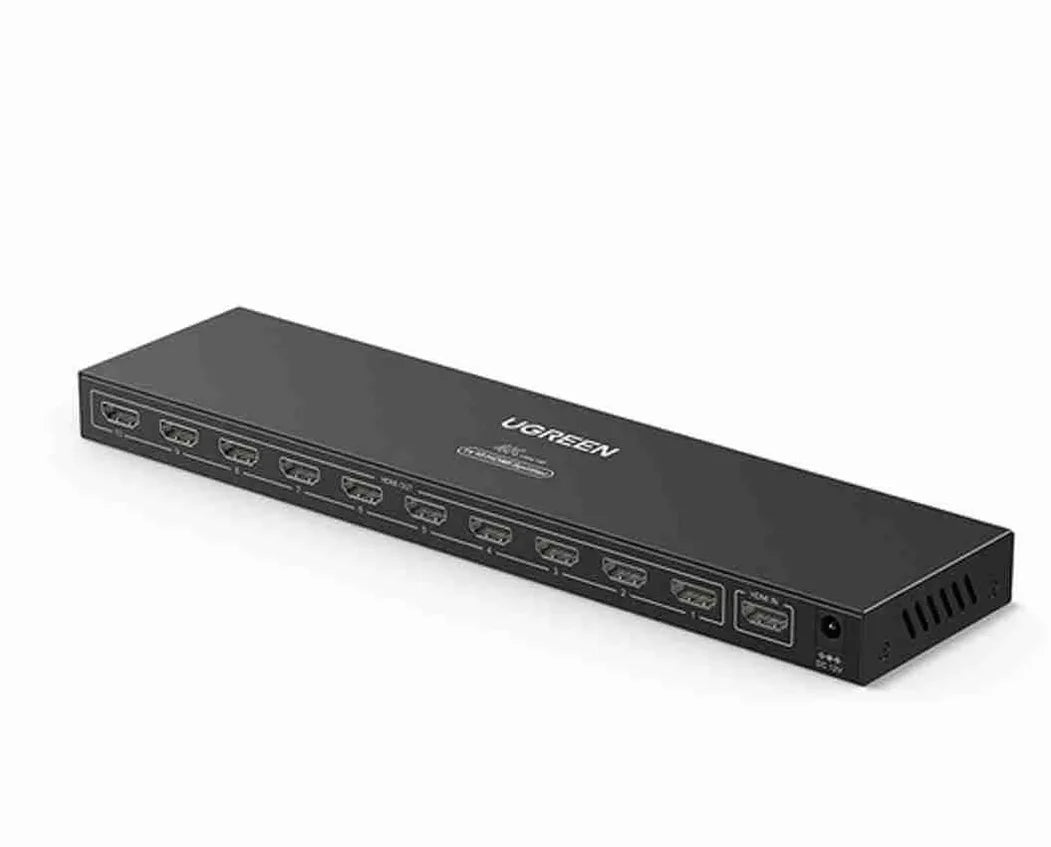

The UGREEN CM514 HDMI Splitter is a high-performance solution for distributing a single HDMI source to ten displays simultaneously, making it ideal for conference rooms, digital signage, and educational environments. It supports resolutions up to 4K@30Hz and is backward compatible with 1080P@60Hz and 720P@120Hz, ensuring sharp, detailed visuals on every screen.
Engineered for reliable signal transmission, this splitter supports HDCP 1.4 and a wide range of audio formats including LPCM, Dolby AC3, and DTS 7.1 for an immersive audiovisual experience. The included DC 5V/2A power supply guarantees stable performance, while support for Deep Color up to 36-bit and 3D video formats provides vibrant, lifelike image quality.
Key Features
Brand
UGREEN
Model Number
CM514
Input
1x HDMI Female
Output
10x HDMI Female
HDMI Version
1.4
HDCP Version
1.4
Max Resolution
4K@30Hz
Supported Resolutions
1080P@60Hz, 720P@120Hz
Audio Formats
LPCM, Dolby AC3, DTS 7.1, Direct Stream Digital (DSD)
Video Features
Deep Color up to 36-bit, 3D
Power Supply
DC 5V/2A (included)
Operating Temperature
0°C to 40°C
Product Type
HDMI Splitter
Connector Type
HDMI
Number of Outputs
10
Compatibility
Compatible with any standard HDMI source device such as laptops, PCs, Blu-ray players, and gaming consoles. Works with HDMI displays, projectors, and TVs that support the listed resolutions and audio formats.
What's included
UGREEN CM514 HDMI Splitter 1 In 10 Out
DC 5V/2A Power Adapter
User Manual
Frequently asked questions
What is the maximum resolution supported by this splitter?
The UGREEN CM514 supports a maximum resolution of 4K at 30Hz. It is also backward compatible with 1080P at 60Hz and 720P at 120Hz.
Does this device support 3D video and surround sound?
Yes, it supports 3D video formats and a wide range of audio formats including LPCM, Dolby AC3, DTS 7.1, and Direct Stream Digital (DSD).
What is included in the box with the splitter?
The package includes the UGREEN CM514 HDMI Splitter and a DC 5V/2A power supply to ensure stable operation.
Can I use this splitter to extend my desktop across multiple monitors?
No, this is a splitter, not a video card. It mirrors the same single HDMI source signal to all ten connected displays simultaneously, rather than extending your desktop.
