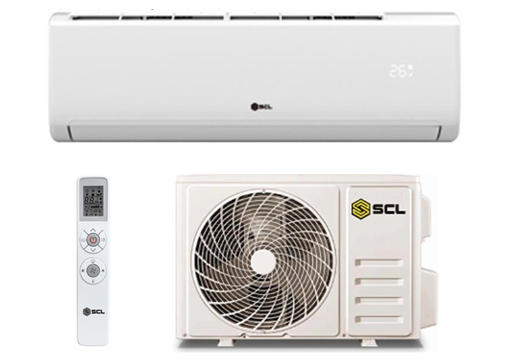

The SCL SCL-AC24OF02 split air conditioner delivers robust 24,000 BTU cooling performance designed for spacious living areas, offices, and commercial environments. Powered by a dependable rotary compressor and R410A refrigerant, this cooling-only system rapidly reduces indoor temperatures while distributing airflow evenly to eliminate hot spots.
Engineered for everyday efficiency and comfort, the unit features an advanced airflow system that operates quietly and extracts up to 5.1 pints of moisture per hour. An included remote control and comprehensive 9.8-foot piping kit provide convenient operation and straightforward installation.
Key Features
Brand
SCL
Model
SCL-AC24OF02
Product Type
Split System Air Conditioner
Cooling Capacity
24,000 BTU
Refrigerant Type
R410A
Operating Mode
Cooling Only
Control Type
Remote Control
Compressor Type
Rotary
Power Supply
220-240V ~ 50Hz, Single Phase
Moisture Removal Rate
5.1 pt/hr
Indoor Noise Level
55 dB(A)
Outdoor Noise Level
57 dB(A)
Indoor Airflow Volume
635.7 CFM
Liquid Pipe Diameter
1/4"
Gas Pipe Diameter
1/2"
Included Piping Kit Length
9.8 ft
Indoor Unit Dimensions (W x D x H)
39.8 x 12.4 x 8.7 in
Outdoor Unit Dimensions (W x D x H)
34.0 x 13.7 x 23.7 in
Highlights
24000BTU
R410A refrigerant
Cooling only
Remote control
Single phase 220-240V~50Hz power supply
2.4L/h moisture removal
55 dB(A) indoor noise level
57 dB(A) outdoor noise level
Rotary type compressor
1080m3/h indoor air flow
Refrigerant liquid piping: 1/4"
Refrigerant gas piping: 1/2"
3 metre piping kit included
Indoor unit dimensions (WxDxH): 1010 x 315 x 220 mm
Outdoor unit dimensions (WxDxH): 863 x 349 x 602 mm
What's included
SCL SCL-AC24OF02 Indoor Unit
Outdoor Compressor Unit
Remote Control
9.8 ft Installation Piping Kit
Frequently asked questions
What is the cooling capacity of this air conditioner?
The unit delivers a cooling capacity of 24,000 BTU.
What type of refrigerant does the unit use?
It operates using R410A refrigerant gas.
Is an installation kit included with the unit?
Yes, it includes a 9.8-foot piping kit along with 1/4" liquid and 1/2" gas piping lines.
What are the operational noise levels for the indoor and outdoor units?
The indoor unit operates at 55 dB(A), while the outdoor unit operates at 57 dB(A).
