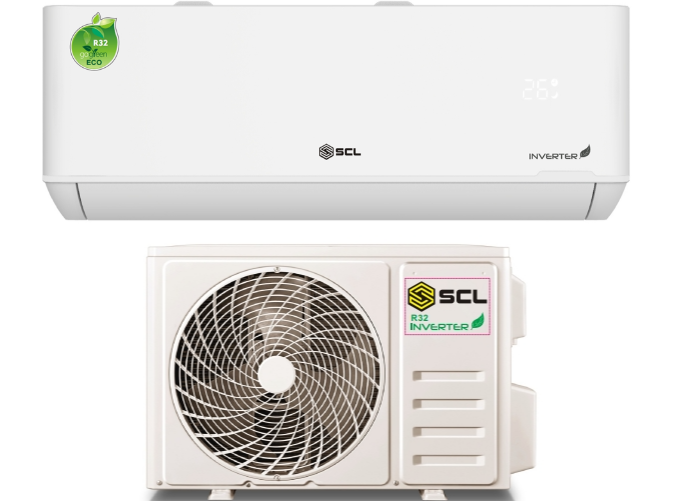

The SCL SCL-AC24IN01 Inverter Split Air Conditioner delivers powerful cooling with an impressive 24,000 BTU capacity, making it an ideal climate solution for large rooms, offices, and open commercial spaces. Driven by an efficient rotary compressor and eco-friendly R32 refrigerant, the system smoothly adjusts compressor speed to provide consistent, comfortable temperatures while minimizing power consumption.
Equipped with a cross-flow indoor fan, this cooling-only air conditioner distributes airflow evenly throughout the room while maintaining quiet operation. An included wireless remote control allows effortless adjustments to temperature and fan settings, and the integrated moisture removal system helps manage indoor humidity for superior everyday comfort.
Key Features
Cooling Capacity
24,000 BTU
Refrigerant
R32 Gas
Function
Cooling Only
Control
Remote Control
Power Supply
Single Phase 208-230V~50Hz
Moisture Removal
0.7 gal/h
Indoor Noise Level
49 dB(A)
Outdoor Noise Level
55 dB(A)
Compressor Type
Rotary Type
Indoor Fan
Cross Flow
Connecting Liquid Piping
1/4 in.
Connecting Gas Piping
1/2 in.
Connection Wiring
4x0.75 mm² (Core)
Indoor Unit Dimensions (W x D x H)
43.3 x 13.1 x 8.7 in.
Outdoor Unit Dimensions (W x D x H)
33.6 x 13.7 x 23.7 in.
Piping Kit
9.8 ft.
Highlights
24000BTU
R32 GAS
COOLING ONLY
REMOTE CONTROL
SINGLE PHASE 208-230V~50Hz POWER SUPPLY
2.5LTRS/H MOISTURE REMOVAL
49 dB(A) INDOOR NOISE LEVEL
55 dB(A) OUTDOOR NOISE LEVEL
ROTARY TYPE COMPRESSOR
CROSS FLOW INDOOR FAN
CONNECTING LIQUID PIPING – 1/4”
CONNECTING GAS PIPING – 1/2
CONNECTION WIRING 4X0.75MM2 (CORE)
3 METRE PIPING KIT INCLUDED
INDOOR UNIT DIMENSION (WXDXH) 1100X333X222MM
OUTDOOR UNIT DIMENSION (WXDXH) 853X349X602MM
What's included
SCL Indoor Air Handler
SCL Outdoor Condenser Unit
Remote Control
9.8 ft. Piping Kit (1/4 in. Liquid & 1/2 in. Gas)
Frequently asked questions
What is the cooling capacity of this unit?
This air conditioner provides a cooling capacity of 24,000 BTU.
What type of refrigerant does the air conditioner use?
It uses eco-friendly R32 refrigerant gas.
What are the operating noise levels for the indoor and outdoor units?
The indoor unit operates at 49 dB(A), while the outdoor unit operates at 55 dB(A).
What size piping kit is included with the system?
A 9.8 ft. piping kit is included with 1/4 in. liquid and 1/2 in. gas connection lines.
