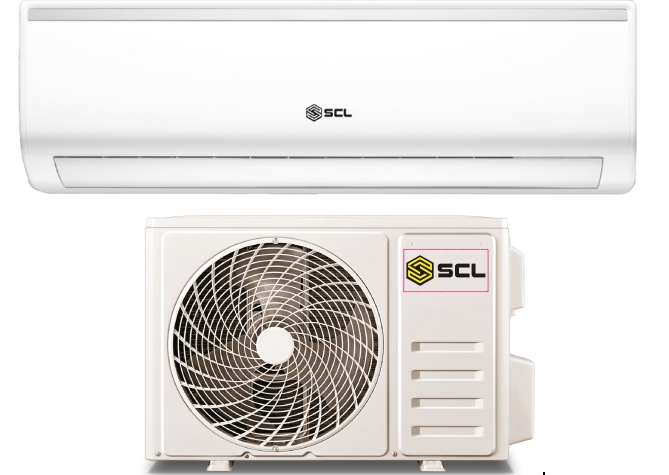

The SCL SCL-AC18OF01 split air conditioner delivers robust 18,000 BTU cooling performance, making it well-suited for medium to large living spaces, offices, and commercial environments. Powered by an on/off rotary compressor and eco-friendly R410A refrigerant, this cooling-only system ensures rapid temperature reduction and steady indoor comfort even during peak heat conditions.
Featuring high-efficiency airflow of 506.2 cu. ft./min (860 m³/h) and an included 9.8 ft. piping kit, the unit distributes refreshing air evenly to eliminate warm spots. Convenient wireless remote operation, reliable moisture removal of up to 3.8 pt./h (1.8 L/h), and quiet indoor performance make it a dependable climate control solution.
Key Features
Brand
SCL
Model
SCL-AC18OF01
Cooling Capacity
18000 BTU
Refrigerant
R410A Gas
Function
Cooling Only
Control
Remote Control
Power Supply
Single Phase 220-240V ~ 50Hz
Moisture Removal
3.8 pt./h
Indoor Noise Level
45 dB(A)
Outdoor Noise Level
55 dB(A)
Compressor Type
Rotary Type
Indoor Air Flow
506.2 cu. ft./min
Refrigerant Liquid Piping
1/4"
Refrigerant Gas Piping
1/2"
Connection Wiring
3 x 1.5 mm² (Core)
Piping Kit
9.8 ft. Piping Kit Included
Indoor Unit Dimensions (W x D x H)
35.8 x 11.6 x 8.1 in.
Outdoor Unit Dimensions (W x D x H)
31.3 x 12.0 x 21.6 in.
Highlights
Key Features and Specifications
• 18000BTU
• R410A GAS
• COOLING ONLY
• REMOTE CONTROL
• SINGLE PHASE-220-240V~50Hz POWER SUPPLY
• 1.8LTRS/H MOISTURE REMOVAL
• 45 dB(A) INDOOR NOISE LEVEL
• 55 dB(A) OUTDOOR NOISE LEVEL
• ROTARY TYPE COMPRESSOR
• 860M3
/H INDOOR AIR FLOW
• REFRIGERANT LIQUID PIPING – 1/4″
• REFRIGERANT GAS PIPING – 1/2″
• CONNECTION WIRING 3X1.5MM2
(CORE)
• 3 METRE PIPING KIT INCLUDED
• INDOOR UNIT DIMENSION (WXDXH) 910X294X206MM
• OUTDOOR UNIT DIMENSION (WXDXH) 795X305X549MM
What's included
Indoor Air Handler Unit
Outdoor Condenser Unit
Wireless Remote Control
9.8 ft. Installation Piping Kit
Frequently asked questions
What is the cooling capacity of this air conditioner?
This unit has a cooling capacity of 18,000 BTU, designed to cool medium to large rooms, offices, and commercial spaces.
What type of refrigerant does the unit use?
It uses R410A refrigerant gas for efficient heat transfer and eco-friendly cooling performance.
Does this model provide heating as well as cooling?
No, this unit is designed strictly as a cooling-only system.
Is an installation piping kit included?
Yes, a 9.8 ft. piping kit is included with the air conditioner.
