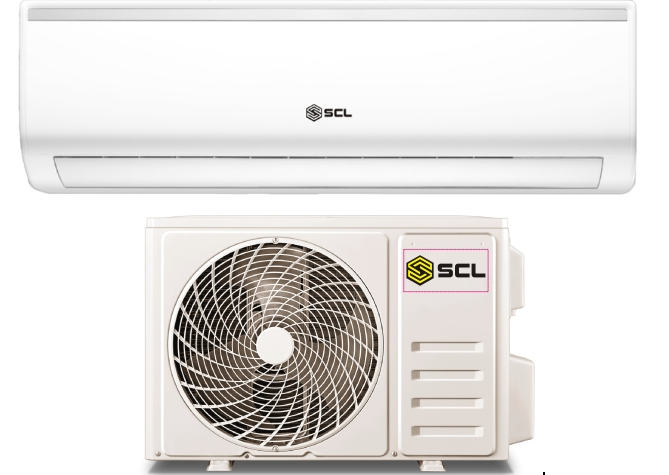

The SCL SCL-AC12OF02 split type air conditioner delivers 12000 BTU of dedicated cooling capacity, providing fast and reliable temperature relief for small to medium-sized residential and light commercial spaces. Powered by a high-efficiency rotary compressor and utilizing eco-friendly R410A refrigerant, this cooling-only system ensures rapid heat absorption and consistent airflow without excessive power consumption.
Equipped with an intuitive remote control, the unit features optimized air distribution to eliminate hotspots and maintain uniform indoor comfort. Designed for durable performance and straightforward maintenance, it includes a complete 9.8 ft piping kit to simplify setup.
Key Features
Brand
SCL
Model
SCL-AC12OF02
Product Type
Split Type Air Conditioner
Cooling Capacity
12000 BTU
Function
Cooling Only
Refrigerant
R410A
Compressor Type
Rotary
Control Type
Remote Control
Power Supply
Single Phase 220-240V ~ 50Hz
Dehumidification Rate
1.4 qt/h
Indoor Airflow Volume
323.7 CFM
Indoor Sound Level
46 dB(A)
Outdoor Sound Level
53 dB(A)
Refrigerant Liquid Pipe Size
1/4"
Refrigerant Gas Pipe Size
1/2"
Indoor Dimensions (W x D x H)
30.6 x 9.8 x 8 in
Outdoor Dimensions (W x D x H)
31 x 11.4 x 19.6 in
Highlights
12000BTU
R410A gas
Cooling only
Remote control
Single phase 220-240V~50Hz power supply
1.3L/h moisture removal
46 dB(A) indoor noise level
53 dB(A) outdoor noise level
Rotary type compressor
550m3/h indoor air flow
Refrigerant liquid piping: 1/4"
Refrigerant gas piping: 1/2"
Connection wiring: 3x1.0mm2 (core)
3 metre piping kit included
Indoor unit dimension (WxDxH): 776x250x202mm
Outdoor unit dimension (WxDxH): 787x290x498mm
What's included
SCL Indoor Air Handler Unit
SCL Outdoor Condenser Unit
Remote Control
9.8 ft (3 m) Refrigerant Piping Kit
Frequently asked questions
What is the cooling capacity of this unit?
This air conditioner features a cooling capacity of 12000 BTU.
Does this model provide heating as well as cooling?
No, this unit is engineered specifically for cooling-only operation.
What type of refrigerant is used?
The system utilizes R410A refrigerant gas.
What is included with the air conditioner for installation?
The air conditioner includes a remote control and a 9.8 ft piping kit.
